Residential storage

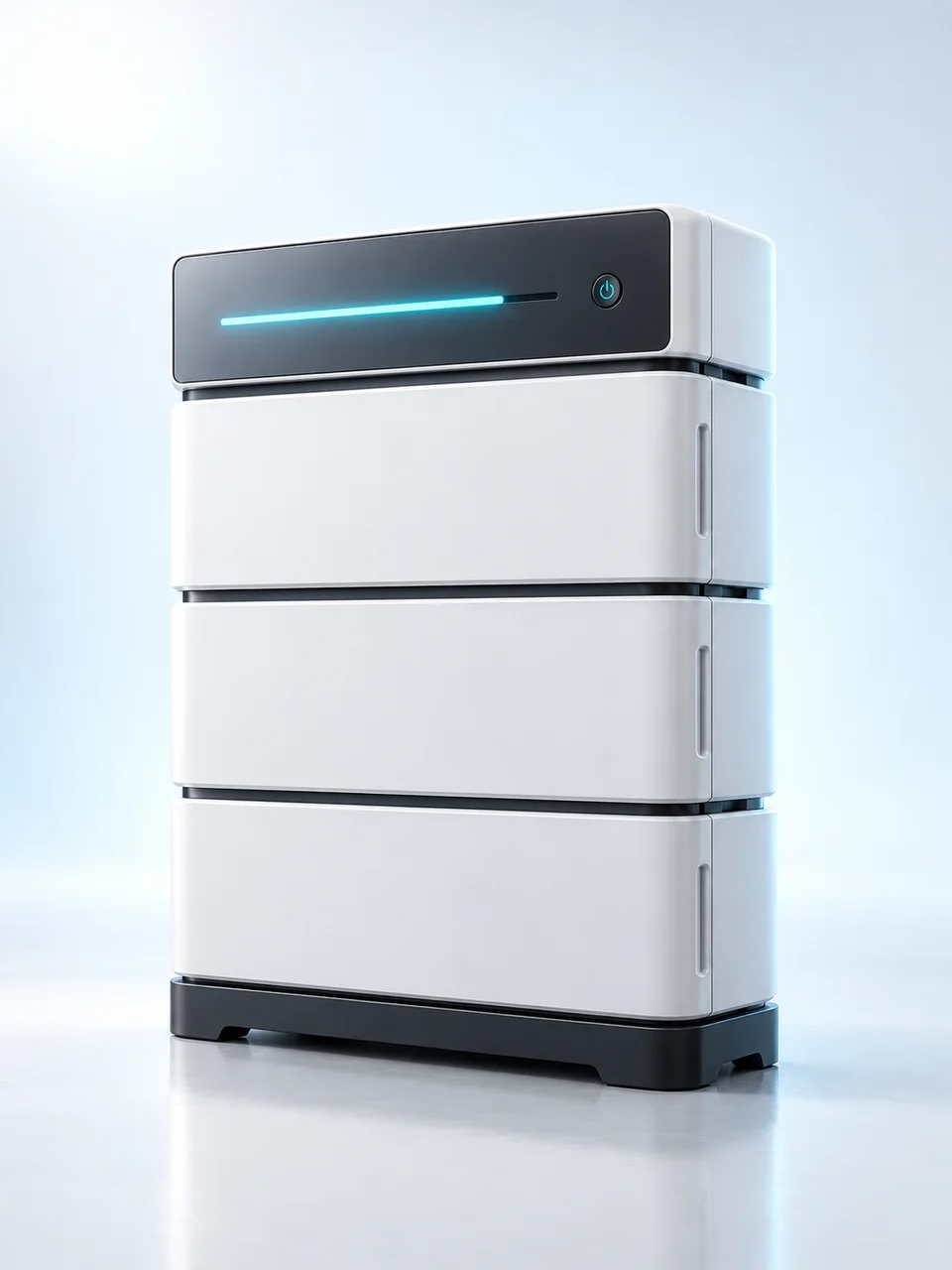

Stackable Home Battery 5.12 / 10.24 kWh
Slim LFP storage that grows with your home.
- 5.12–10.24 kWh
- 6,000
- IP65
A compact 51.2 V lithium iron phosphate battery in 5.12 kWh and 10.24 kWh sizes. Up to 16 units run in parallel, and the IP65 enclosure works indoors or outdoors — pair it with any mainstream hybrid inverter.
ModelsXY-HS5XY-HS10
- IEC 62619
- IEC 62040
- IEC 61000
- UN38.3
- CE
Highlights
- 6,000 cycles at 80% DoD, 15-year design life
- Up to 16 units in parallel
- IP65 — indoor and outdoor installation
- CAN / RS485 / Wi-Fi, 24/7 remote monitoring
Key parameters
| Model | XY-HS5 | XY-HS10 |
|---|---|---|
| Cell chemistry | LiFePO₄ (LFP) | |
| Nominal voltage | 51.2 V | |
| Rated capacity | 100 Ah | 200 Ah |
| Rated energy | 5.12 kWh | 10.24 kWh |
| Cell configuration | 1P16S | |
| Parallel / expansion | Up to 16 units | |
| Cycle life | 6,000 cycles (0.5C, 80% DoD, 25 °C) | |
| Calendar life | 15 years | |
| Self-discharge | ≤ 5% / month (25 °C, 50% SoC) | |
| Communication | CAN, RS485, dry contact, Wi-Fi | |
| Ingress protection | IP65 | |
| Installation | Indoor & outdoor | |
| Operating temperature | Charge −5 ~ 50 °C · discharge −15 ~ 55 °C | |
| Dimensions | 460 × 165 × 652 mm | 550 × 165 × 867 mm |
| Weight | 50 kg | 95 kg |
| Certifications | IEC 62619, IEC 62040, IEC 61000, UN38.3 | |
