Inverters

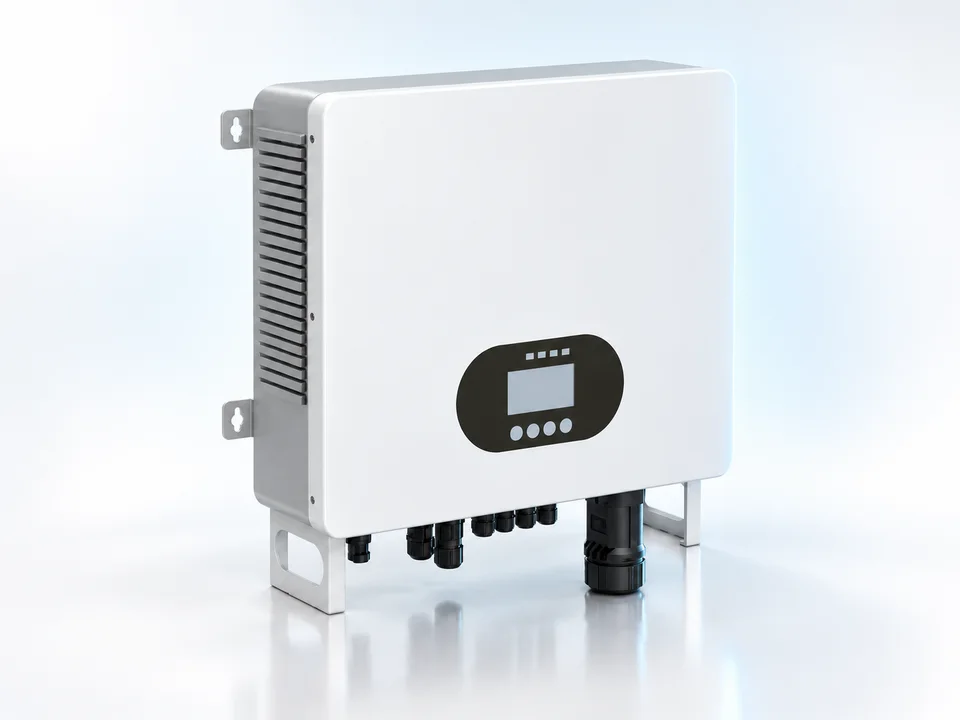

G-Series Off-Grid Inverter 3.5 kW / 5.5 kW
Solar-first off-grid power with parallel expansion.
- 3.5–5.5 kW
- IP54
Pure sine wave off-grid inverters with built-in MPPT (120–430 V), up to 6 kW of PV and compatibility with lithium or lead-acid batteries. The 48 V model runs up to nine units in parallel.
ModelsG3000G5000
- CE
Highlights
- 3.5 kW (24 V) or 5.5 kW (48 V)
- MPPT 120–430 V, up to 6 kW PV
- Parallel up to 9 units (G5000)
- App + LCD, IP54
Key parameters
| Model | G3000 | G5000 |
|---|---|---|
| Rated power | 3,500 W | 5,500 W |
| Surge / overload | 6,000 VA | 10,000 VA |
| Battery voltage | 24 V | 48 V |
| Battery type | Li-ion / lead-acid | |
| Parallel / expansion | — | Up to 9 units |
| AC output voltage | 230 V AC ± 5%, 50 / 60 Hz | |
| Output waveform | Pure sine wave | |
| Peak efficiency | 93% | |
| Transfer time | 10 ms (PC) / 15 ms (appliances) | |
| Max. PV array power | 4,000 W | 6,000 W |
| MPPT voltage range | 120 – 430 V DC | |
| Max. PV open-circuit voltage | 500 V DC | |
| Max. charge current | 120 A | 80 A |
| Communication | USB; optional Wi-Fi, 4G, GPRS, RS485/CAN, dry contact | |
| Display / monitoring | App + LCD + LED | |
| Ingress protection | IP54 | |
| Operating temperature | 0 ~ 50 °C | |
| Dimensions | 300 × 450 × 110.5 mm | |
| Weight | 7.5 kg | |
