C&I storage

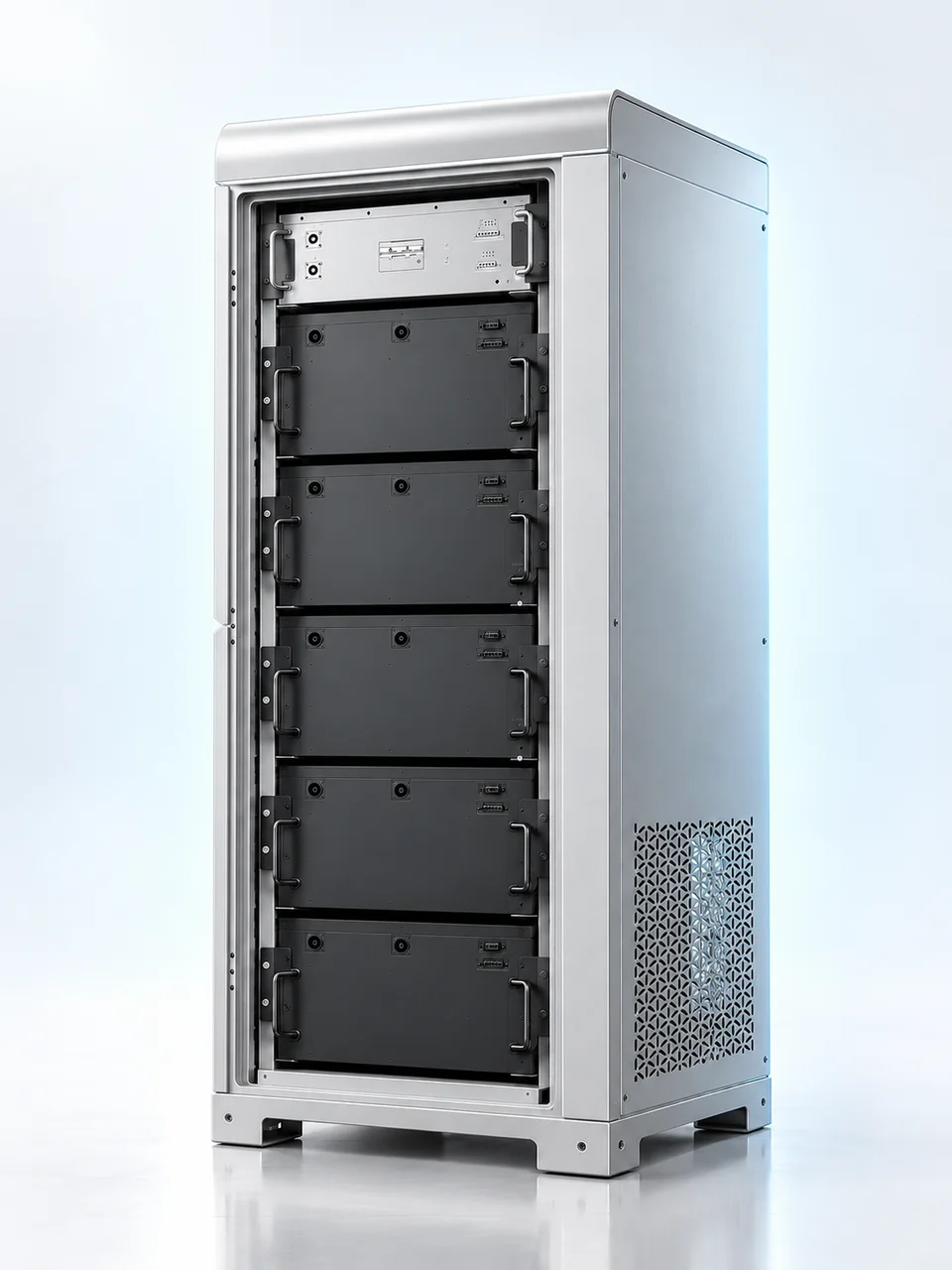

Solar Vigour All-in-One Hybrid ESS 30 kW / 60 kWh · 40 kW / 80 kWh
Inverter, battery and fire protection in one cabinet.
- 59–80.5 kWh
- 8,000
- IP53
An integrated three-phase system with a SiC hybrid PCS, 4 MPPTs and 8 PV inputs, and up to 80.5 kWh of LFP storage rated for 8,000 cycles. Supports on/off-grid, black start and generator input.
ModelsMP-SV-30-60MP-SV-40-80
- IEC 62619
- CE
- UN38.3
Highlights

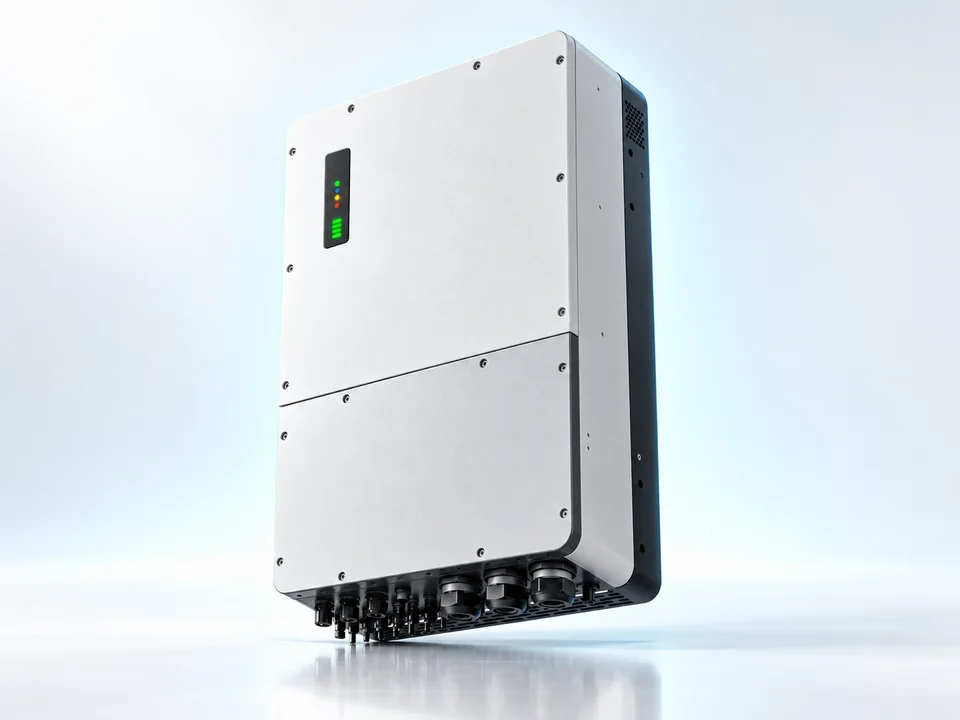

- SiC hybrid inverter, 4 MPPT / 8 PV inputs
- 8,000-cycle LFP modules, 20-year life
- Aerosol fire suppression built in
- On/off-grid, black start, generator input
Key parameters
| Model | MP-SV-30-60 | MP-SV-40-80 |
|---|---|---|
| Rated power | 30 kW | 40 kW |
| Rated energy | 59 kWh (5 × 11.8 kWh) | 80.5 kWh (5 × 16.1 kWh) |
| Cell configuration | 1P90S | |
| Nominal voltage | 288 V (252 – 324 V) | |
| Cycle life | 8,000 cycles (0.5C) | |
| Max. PV array power | 60 kW | 80 kW |
| MPPT voltage range | 150 – 950 V DC | |
| MPPT / PV inputs | 4 MPPT / 8 PV inputs | |
| Grid voltage / frequency | 380 / 400 V AC, 3W+N+PE · 50 / 60 Hz | |
| Surge / overload | 110% long-term | |
| Transfer time | < 100 ms | |
| Communication | RS485 / CAN · Modbus-RTU | |
| Thermal management | Battery passive / PCS air cooling | |
| Fire suppression | Aerosol | |
| Ingress protection | IP53 (system) | |
| Operating temperature | −20 ~ 55 °C | |
| Dimensions | 830 × 840 × 1,750 mm | |
| Weight | 720 kg | 846 kg |
